2012 Ford F150 Radio Not Working: Troubleshooting Tips

by Mike
14 minutes read
A+A-
Reset

If you’re a Ford F150 owner, you know that cruising around town in your truck while listening to your favorite tunes is unbeatable. But what do you do when your radio suddenly stops working?

In this article, we’ll help you diagnose the issue and offer a detailed guide on how to fix it.

We’ll start by listing the five potential reasons that could lead to your Ford F150 radio not working properly. These include blown radio fuses, faulty wires or solder flow, frozen-up units, defective radio units, and systems that need updates.

Then, we’ll dive into the details of how to diagnose and fix the issue. This will include steps like checking the fuse box, examining the wiring, detaching the mainboard, restarting a frozen-up radio unit, installing the latest Sync updates, replacing a bad factory unit, and taking your Ford F150 to a professional.

So, let’s get started and get your radio back to its former glory!

5 Reasons That Lead to Your Ford F150 Radio Not Working

If you’re experiencing issues with your Ford F150 radio, you’re not alone. Many F150 owners have reported problems with their radios. Here are five reasons that might be causing your radio to malfunction:

1. Blown Radio Fuse

The most common cause of radio issues in the F150 is a blown fuse or multiple fuses. This can cause the radio to work erratically or not at all.

Blown fuses can be caused by a variety of factors, including metal objects falling into the fuse box, friction between the wiring harness and fuses, using bulbs with higher amperage than recommended, and a shorted trailer harness. Check the fuses to see if they need to be replaced.

2. Faulty Wires or Solder Flow

Another reason why your F150 radio might not be working is due to faulty wires or solder flow. Over time, wires can become loose or short out due to the vibrations of the vehicle.

Damaged wires can prevent the radio system from working properly, leading to a malfunctioning radio in your F150. Solder flow or tiny damages inside the mainboard of the radio could also cause interruptions in the radio’s performance.

3. Frozen-Up Unit

Sometimes, the solution to your radio issues is as simple as restarting the system. If your radio was working fine just a few days ago, but now it’s not operating as it should, it might be frozen. Try restarting the system to see if that resolves the issue.

4. Defective Radio Unit

While it’s not a common occurrence, some F150 radio units have been defective since day one. You may not have noticed any issues with the radio if you haven’t used it much, or the problem may not have arisen within the first few months of use.

This was the case with many 2009 F150 owners who reported their radios not working properly. It’s possible that some later models may also have defective radios.

5. System Needs Updates

If your F150 has the CarPlay feature, your radio system might need to install updates.

This is especially true if the smartphone Sync feature isn’t working smoothly. While the truck’s system will typically download any necessary software updates automatically, it may require manual intervention from time to time. Check out our article on how to update CarPlay if your F150 has this feature.

How to Diagnose and Fix the Issue of an F150 Radio Not Working

If your F150 radio is not working, it can be frustrating, especially if you spend a lot of time on the road. However, before you rush to replace the unit, it’s essential to diagnose the problem.

Here are the steps you can take to identify and fix the issue.

Step 1: Check the Fuse Box and Replace Any Damaged Fuses

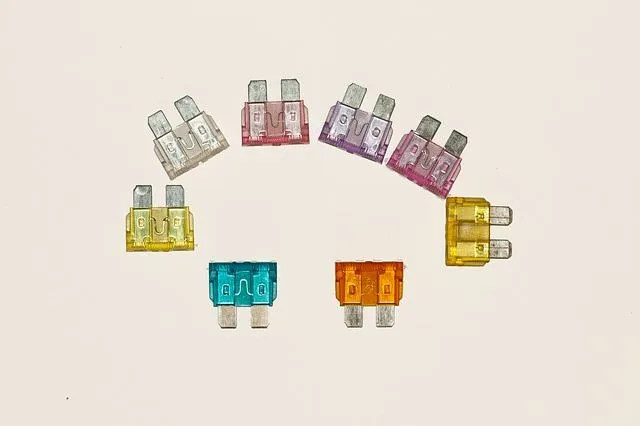

The first thing you should check when your F150 radio is not working is the fuse box. A blown fuse is the most common cause of a malfunctioning truck radio.

To locate the fuse box, consult your user’s manual. Once you find it, remove the cover, but make sure to turn off your vehicle first.

The signs of a damaged or blown fuse include a darkened appearance or a broken top. If you find a damaged fuse, detach it and replace it with a new one.

Step 2: Take a Look at the Wiring and Change If Necessary

The second most common reason why your F150 radio may not be working is loose or damaged wiring.

To check for this, detach the radio unit and inspect the wires. If you notice any corrosion or damage, you’ll need to replace the wires. If the wires are loose, tighten them.

Step 3: Detach the Mainboard If You Suspect There’s Solder Flow

If your F150 radio works for a while, stops operating for a week or two, then goes back to normal, there may be solder flow in the mainboard, which you must detect and fix.

To fix this issue, detach the radio’s mainboard and check if the solder joints need resoldering.

Place the mainboard on a piece of cardboard, put it along with its makeshift tray in your toaster oven, and bake it at 385 degrees for around six to eight minutes. Allow the board to cool completely before reinstalling it back in your vehicle.

Step 4: Restart a Frozen-Up Radio Unit

If your radio is on but won’t respond to your commands, you can try to reset the unit without having to detach any parts.

Hold down both the power button and the right seek button simultaneously for around ten to 15 seconds. The unit should turn off and then switch on again.

If that does nothing to clear up the frozen screen, you may want to remove the negative battery terminal from the unit. Keep it away for around 30 minutes before reconnecting it, and hopefully, your problem should be solved.

Step 5: Install the Latest Sync Updates

A Ford F-150 radio searches for updates on a regular basis, but sometimes it just comes short.

This is why you need to check for updates manually every once in a while to make sure the radio works smoothly, especially if you’re having problems with the Sync software.

To search for and encourage your unit to download updates, turn your vehicle on, go to Settings to enable Wi-Fi scanning in your Ford F-150, find your home’s Wi-Fi network and connect to it, make sure your Sync account is logged in, open the Settings menu again and pick General, and go to Automatic System Updates, then select Scan for Updates Now. If the system finds any available updates, allow the installation.

Step 6: Replace a Bad Factory Unit

If your F150 radio still doesn’t work even after all you’ve done, the problem may be in the unit itself.

In this case, you’ll need to contact the car dealership to get a replacement or get an aftermarket option. A good idea would be to check your warranty, too. If you’re not familiar with how to install radios, you can always seek the help of a professional for your unit replacement task.

Step 7: Take Your Ford F150 to a Professional

If you’re still uncertain what might be causing your F150 radio to not work properly, or you’re not comfortable taking out parts of your vehicle, there’s no need to worry.

Just contact an expert, let them find out the exact problem with your unit, and allow them to make any necessary fixes. Feel free to let them know you also checked these previous things as it might speed up the process.

Final Words

Dealing with a malfunctioning radio in your Ford F150 can be frustrating. However, we hope this guide has helped you troubleshoot the issue.

Remember, a blown fuse, worn-out wires, or solder flow issues can be the culprits. Sometimes, the unit itself might be damaged, or it may need a reset. If you’re facing problems with Apple CarPlay, check out our article on Ford CarPlay not working for specific information. If you’re unable to diagnose the issue, it’s best to contact a professional.

By following these steps, you’ll be a few steps closer to resolving the issue and enjoying your favorite tunes on the road.

Frequently Asked Questions

How to Perform a Hard Reset on a 2012 F150 Radio?

If you need to perform a hard reset on your 2012 F150 radio, follow these steps:

  1. Turn off the engine and remove the key from the ignition.
  2. Locate the fuse box under the dashboard on the passenger side.
  3. Locate the fuse for the radio and remove it.
  4. Wait for 5 minutes and then reinsert the fuse.
  5. Turn on the engine and check if the radio is working.

What Could Cause the Clock to Flash on the Radio of a 2012 Ford F150 When the Radio is Not Functioning?

If the clock on your 2012 Ford F150 radio is flashing, it could be a sign of a malfunctioning radio.

The most common cause of this issue is a dead battery. If the battery is not providing enough power to the radio, it may not function properly. Another possible cause could be a blown fuse. Check the fuse box to see if any fuses have blown.

Is There a Common Radio Reset Code for the 2012 Ford F150, and Where Can I Find It?

There is no common radio reset code for the 2012 Ford F150. However, you can find the reset code in the owner’s manual or by contacting your local Ford dealer.

Where Can I Find a Forum to Troubleshoot Issues with My 2012 Ford F150 Radio?

If you need to troubleshoot issues with your 2012 Ford F150 radio, you can find helpful forums online.

One popular forum is the Ford F150 Forum at https://www.f150forum.com. You can also find forums on social media platforms like Facebook.

What Are the Steps to Replace the Radio in a 2012 Ford F150?

If you need to replace the radio in your 2012 Ford F150, follow these steps:

  1. Disconnect the negative battery cable.
  2. Remove the trim panel around the radio.
  3. Remove the screws that hold the radio in place.
  4. Disconnect the wiring harness and antenna cable from the back of the radio.
  5. Install the new radio and reconnect the wiring harness and antenna cable.
  6. Secure the radio in place with screws.
  7. Reinstall the trim panel.
  8. Reconnect the negative battery cable.

Why Might the Information Display Stop Working on a 2012 Ford F150 Even When the Radio is Not Operating?

If the information display on your 2012 Ford F150 is not working, it could be a sign of a malfunctioning instrument cluster. The instrument cluster controls the display and gauges on the dashboard.

If the instrument cluster is not functioning properly, it may need to be replaced. Contact your local Ford dealer for assistance.
